Inserting Door Trim Panel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Position Of Front Door Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

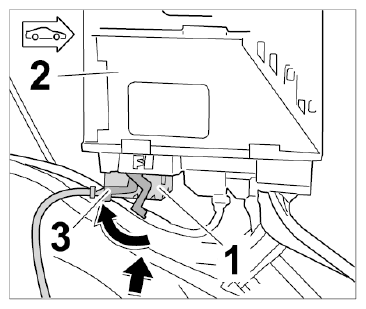

Connect electrical plug connection -1- to control module -2- by operating locking lever -3- and lock.

Fig 2: Locking Plug Connection To Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

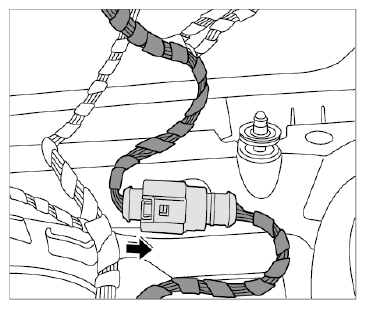

Lock electrical plug connection -arrow- until it engages audibly.

Fig 3: Locking Electrical Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

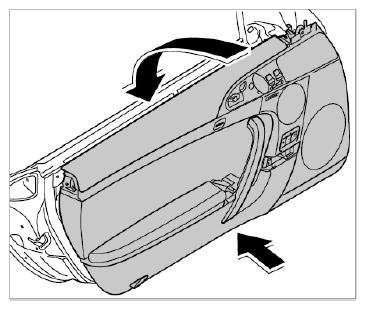

Hook front door trim panel into sealing channel at the top.

Fig 4: Hooking In Door Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
