Removing Microswitch For Window Opening Controls

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

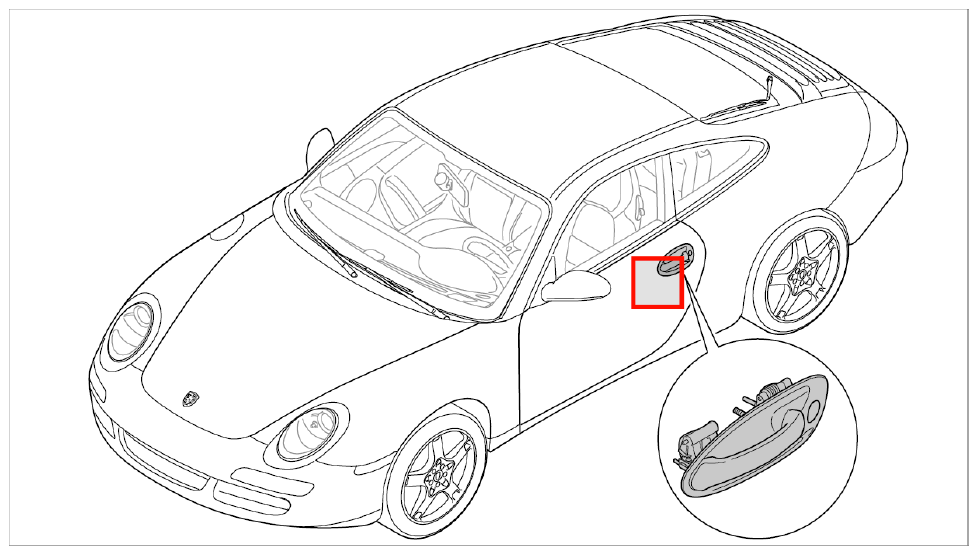

Fig 1: Identifying Position Of Window Opening Microswitch
G09826541Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening nuts -1-  .
  2. Pull bottom section of door handle -2-  slightly backwards.

    Information

    • Make sure that the locking lug on the door handle does not break when removing the microswitch.
  3. Gently loosen the locking tab -arrow A-  and remove the microswitch -3- -arrow B-  .
    4. Fig 2: Removing Microswitches
    G09826542Courtesy of PORSCHE CARS NORTH AMERICA, INC.
