Installing Microswitch For Window Opening Controls: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

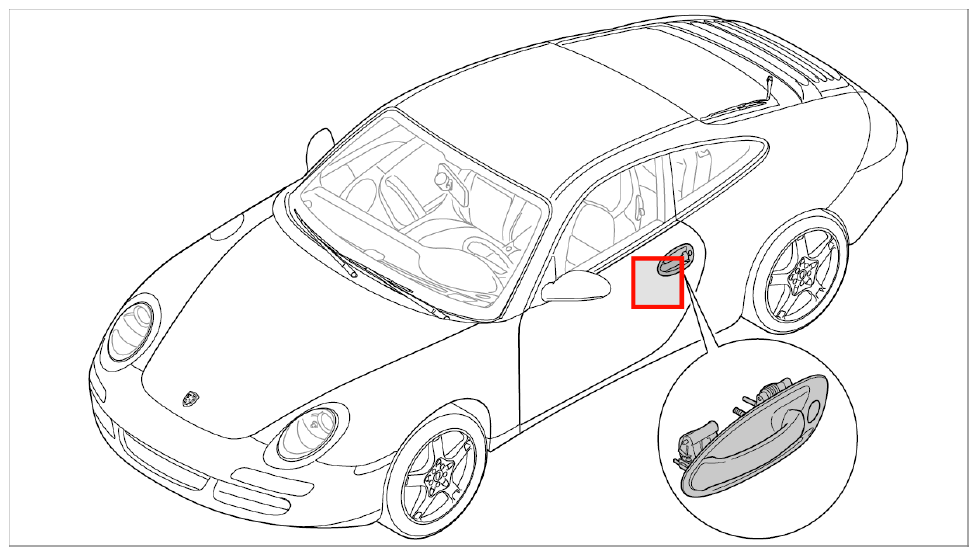

Fig 1: Identifying Location For Window Opening Microswitch
G09826543Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position microswitch -3-  on the door handle -4-  and press in until it can be felt to engage.
  2. Position the lower part of the door handle -2-  under the handle and screw down with fastening nuts -1-  . Tightening torque → Final tightening: 9.7 Nm  (7 ftlb.)

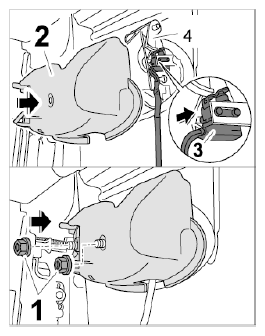

    3. Fig 2: Installing Microswitch
    G09826544Courtesy of PORSCHE CARS NORTH AMERICA, INC.
