Subsequent Work For Closing Aid

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

If a new closing aid is installed, it must be initialised.

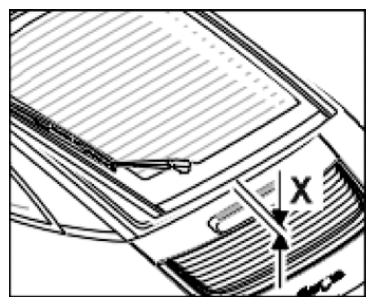

Adjust the position of the closing aid to the specified ejection height. The position of the closing aid affects the ejection height and the chafing noises at the rear lid. After opening the rear lid, the ejection height should be X = 26.7 +/-10 mm.

Fig 1: Identifying Position Of Closing Aid To Specified Ejection Height
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

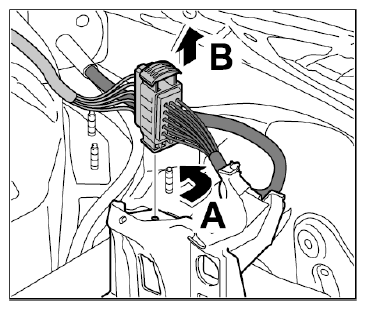

Disconnect power supply for the closing aid. To do this, disconnect the central connector for the Targa roof (30-pin).

Fig 2: Removing Central Connector For Roof Assembly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Turn connector in direction of -arrow A- and pull it up and off.
- To disconnect the connector, open the lock -arrow B- .

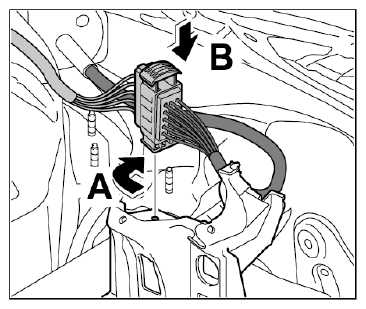

Reconnect power supply. Rejoin and position central connector (30-pin).
- Connect connector and close the lock -B- .
- Position connector and screw in securely in direction of arrow -A- .

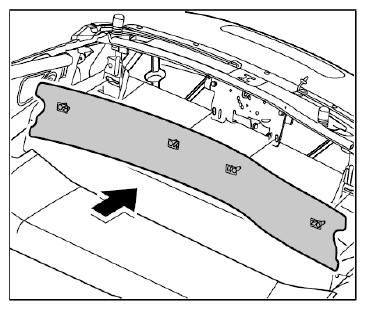

Position rear-wall lining and push on in direction of arrow until the pins on the cover clip into place.

Fig 4: Installing Rear-Wall Lining
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
If a customer subsequently complains about noise coming from the rear window cover, note the following procedure and carry it out if necessary. → WM 648615 ADJUSTING REAR WINDOW COVER
