Marking The Bonding Area
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Only if the windscreen is new and does not have a preliminary coat

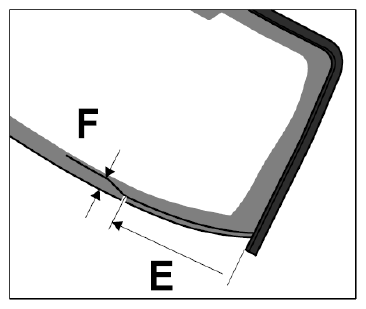

- Before applying the adhesive, mark the course of the adhesive bead in accordance with the dimensions -E- = 160 mm, -F- = 30 mm on the left and right on the lower edge of the windscreen.
