Separating Glass As Far As P5

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

  1. Release spooling device.
  2. Position deflection roller in the lower left corner.
  3. Press deflection roller with fastening intake firmly against the glass.
  4. Fix fastening intake onto the glass by moving the actuating lever.
  5. Pass cutting thread over the deflection roller onto the spooling device.
  6. Separate glass by spooling the cutting thread on the spooling device as far as point -P5-  .
  7. Remove the windscreen.

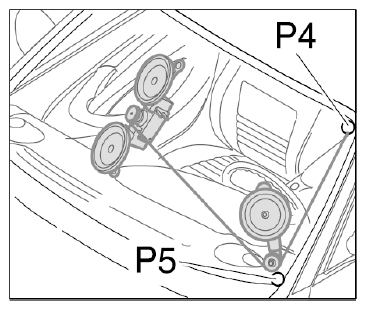

    8. Fig 1: Separating Glass As Far As P5
    G09826492Courtesy of PORSCHE CARS NORTH AMERICA, INC.
