Repositioning Spooling Device

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release spooling device.
  2. Release the lower fastening intake on the spooling device.
  3. Pull cutting thread through onto the other side of the fastening intake.
  4. Fix fastening intake onto the glass by moving the actuating lever.

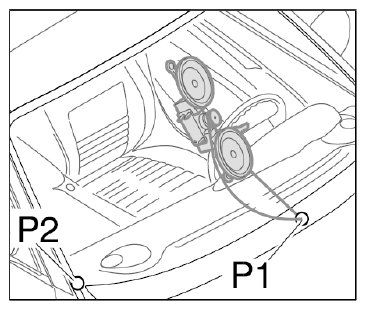

    5. Fig 1: Repositioning Spooling Device
    G09826487Courtesy of PORSCHE CARS NORTH AMERICA, INC.


  1. Release spooling device.
  2. Release the upper fastening intake on the spooling device.
  3. Pull cutting thread through onto the other side of the fastening intake.
  4. Fix fastening intake onto the glass by moving the actuating lever.

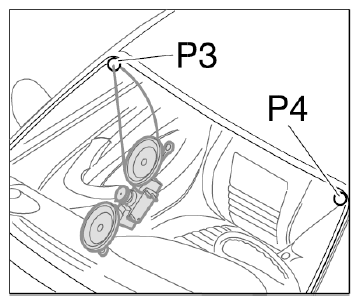

    5. Fig 1: Repositioning Spooling Device
    G09826490Courtesy of PORSCHE CARS NORTH AMERICA, INC.
