Removing Glass With Cutting Device - Wire Separator
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The following instructions describe the general procedure for removing car windows with the glass separating tool VAG 1474 B.
- Information on procedures relating to specific vehicles can be obtained from the instructions in the corresponding Technical Information.
Information
- It is generally possible to remove the windscreen with the cutting wire and the optional cutting thread contained in the tool set.
- In contrast to cutting threads, however, the cutting wire has the following disadvantages:
- Danger of injury when tearing off the cutting wire.
- Danger of damage to materials on paint surfaces and interior equipment parts.
- For the reasons outlined above we recommend using the cutting thread.

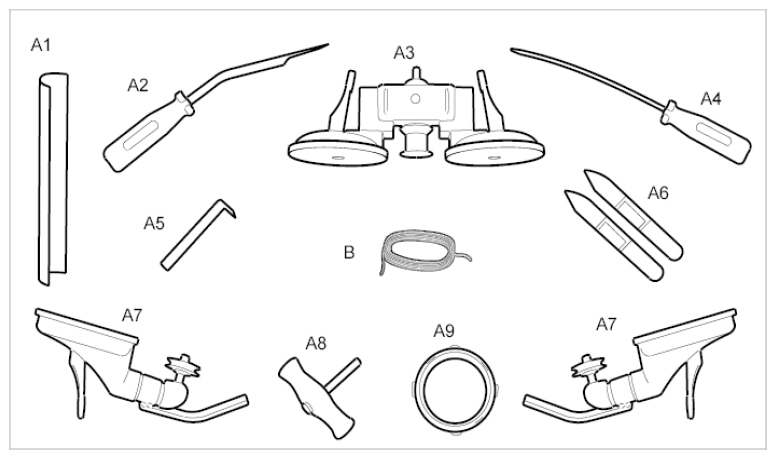

- Glass separating tool VAG 1474 B )1)
- Cutting thread
- A1 Guide rail
- A2 Cutting tool (wire holder)
- A3 Spooling device
- A4 Awl
- A5 Guide rail
- A6 Filler
- A7 Steering roller with arm bracket
- A8 Handle
- A9 Square cutting wire
1) Contains component set A1-A9 and protective film for dashboard
