Guiding Cutting Thread Into The Gap In The Glass

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The cutting thread should be positioned under the rim as far as possible. The sealing lip must be raised slightly in the upper part of the glass in order to pull the cutting thread through.

Pull cutting thread -B- in the direction of the arrow through the gap between the glass and the body. Use filler if necessary.

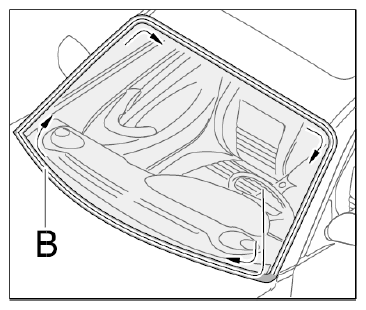

Fig 1: Guiding Cutting Thread Into Gap In Glass
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
