Cutting Power When Removing Glass With Cutting Thread

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The power for separating the glass is weaker when the cutting thread is deflected to its maximum point. An angle greater than 90° should be avoided.

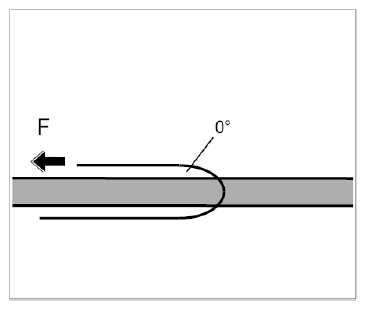

Fig 1: Removing Glass With Cutting Thread Angle (High Cutting Power)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unfavorable angle (strong traction required)

Fig 2: Removing Glass With Cutting Thread Angle (Average Cutting Power)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Favorable angle (average traction required)

Fig 3: Removing Glass With Cutting Thread Angle (Low Cutting Power)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Optimum angle (minimum traction required)
