Attaching Cutting Thread To The Body

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the loose end of the cutting thread -B-  firmly at a suitable point on the body with the fastening screw -2-  of a component (e.g. wiper motor fastening). To do this, unscrew the fastening screw, wind the cutting thread -B-  around the screw and tighten the fastening screw again.

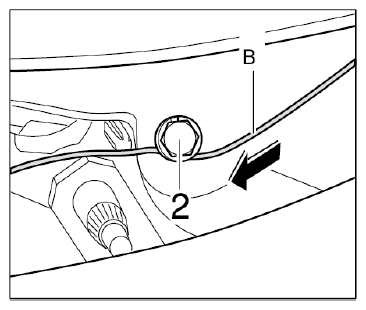

    Fig 1: Attaching Cutting Thread To Body
    G09826483Courtesy of PORSCHE CARS NORTH AMERICA, INC.
