Installing Central Locking Switch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position central locking switch and push it into the air vent.
  2. Push together the electrical plug connections.

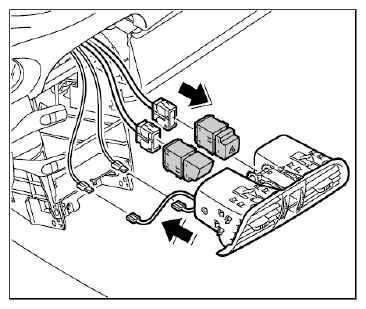

    Fig 1: Installing Central Locking Switch
    G09824352Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Observe the line routing and insert the air vent into the dashboard until it clicks into place.
  4. Check function of air vent illumination, the air vent adjustment, the hazard warning light switch, and the central locking switch.
