Removing Rubber Pad

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

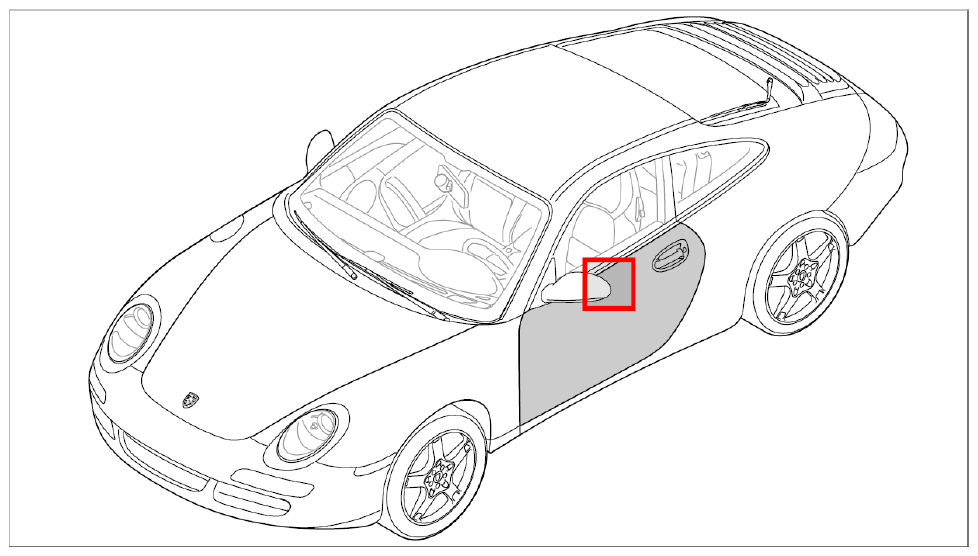

Fig 1: Identifying Installation Position Of Rubber Buffer

G09824288

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Note that removal of the rubber buffer will damage it. It must not be reused.

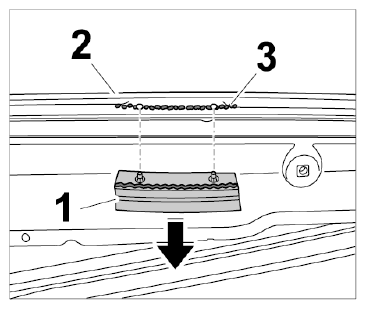

Lever the rubber buffer -1- off the basic door frame -2- using a plastic wedge and remove it -arrow- . Clean any residual adhesive -3- off the basic door frame using cleaning solution.

Fig 2: Removing Rubber Buffer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
