Removing Retaining Clips

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

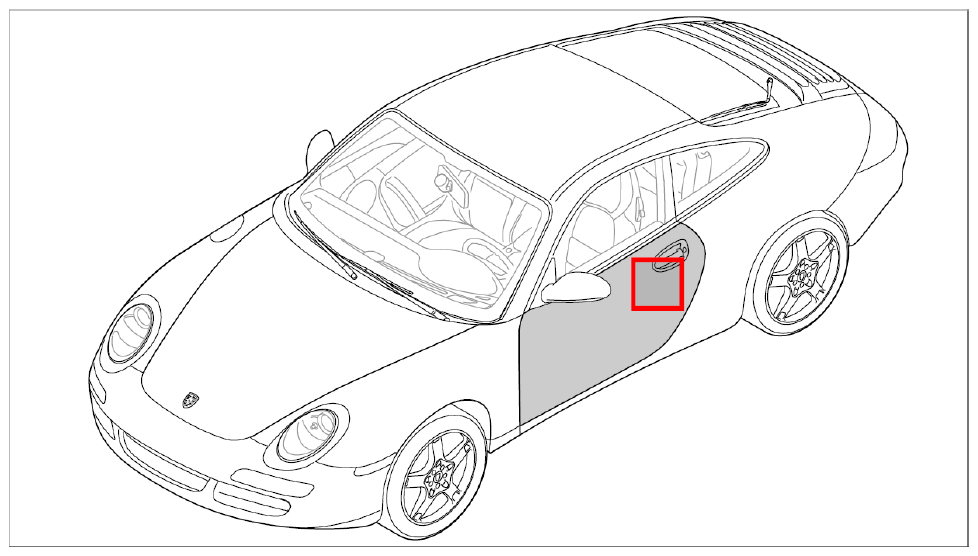

Fig 1: Identifying Position Of Retaining Clips
G09824286Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip retaining clip for electric plug connection -1-  , examine it and replace if necessary.
  2. Unclip retaining clip for bowden cable for power windows -2-  , examine it and replace if necessary.

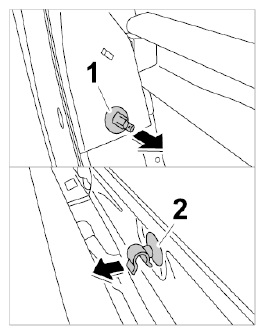

    3. Fig 2: Removing Retaining Clips
    G09824287Courtesy of PORSCHE CARS NORTH AMERICA, INC.
