Installing Rubber Buffer

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

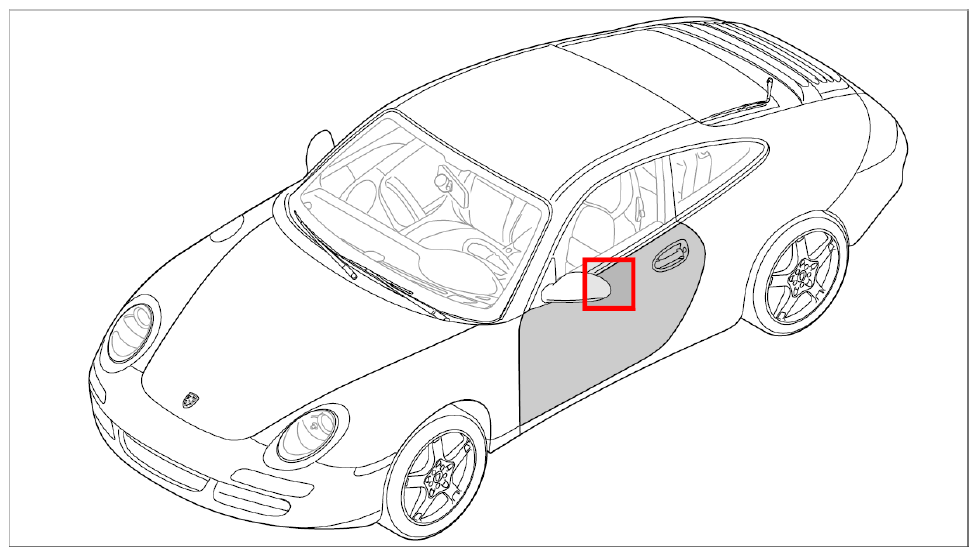

Fig 1: Identifying Installation Position Of Rubber Buffer
G09824290Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove protective film -3-  from rubber buffer -1-  , clip rubber buffer onto basic door frame -2-  and press into position -arrow-  .

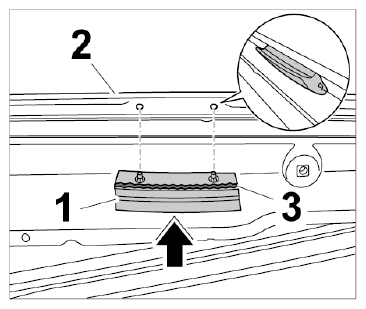

    Fig 2: Installing Rubber Buffer
    G09824291Courtesy of PORSCHE CARS NORTH AMERICA, INC.
