Installing Retaining Clips

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

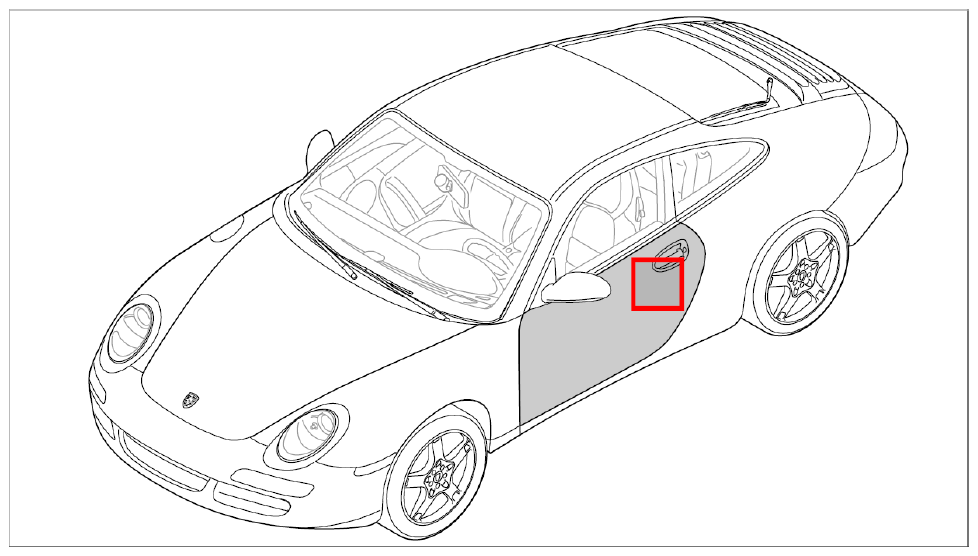

Fig 1: Identifying Position Of Retaining Clips
G09824292Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Clip in retaining clip for plug connection -1-  (-arrow-  ).
  2. Position retaining clip for power window bowden cable -2-  at the door and pull on the assembly string until the retaining clip engages securely -arrow-  .
  3. Cut off the assembly string with side cutters.

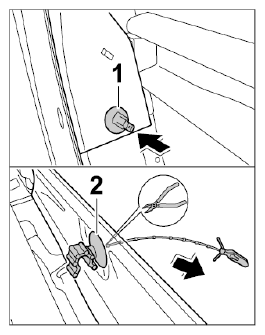

    4. Fig 2: Installing Retaining Clips
    G09824293Courtesy of PORSCHE CARS NORTH AMERICA, INC.
