Fitting Lid And Rubber Sleeves

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Position Of Lid And Rubber Sleeves

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position lid -1- and rubber sleeves -2- on basic door frame and press in until they click into place.

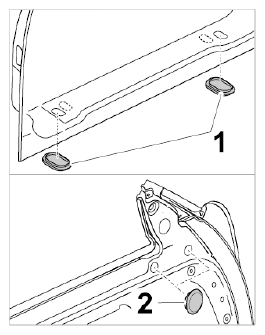

Fig 2: Identifying Lid And Rubber Sleeves
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
