Fastening The Hinge Joint

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

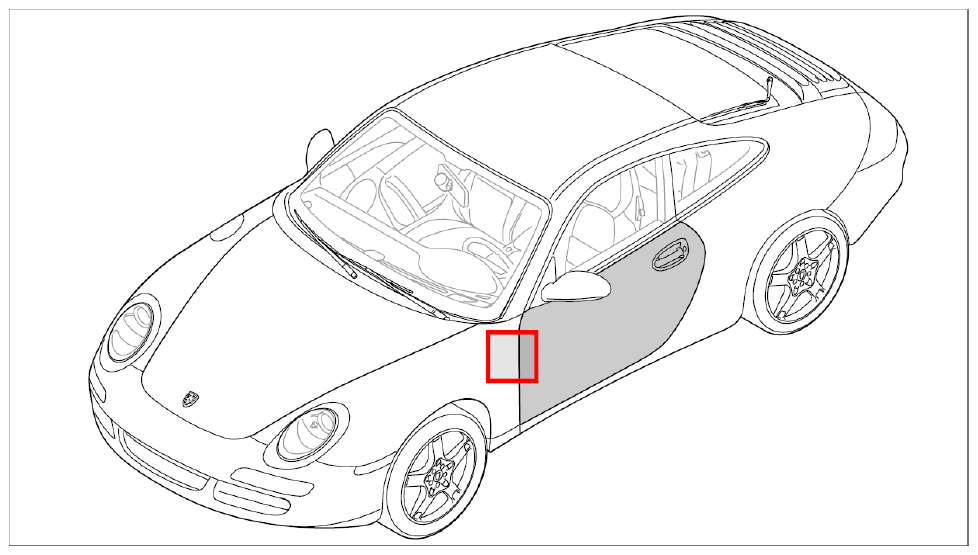

Fig 1: Identifying Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

To ensure that the tapered seat of the hinge is positioned without tension, it may be necessary to take the door hinges off the door if:

A new bare door shell is installed.
The bare door shell was or is damaged.
The bare door shell has no seam joining line.

See → 575115 ADJUSTING FRONT DOOR if necessary

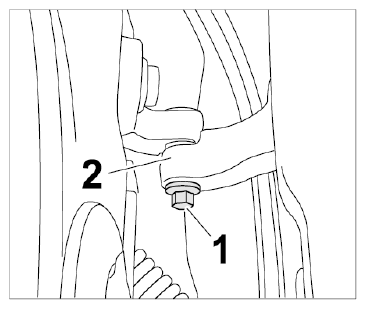

Tighten fastening screws M6 x 12 -1- on the hinge joints -2- . Tightening torque → : 13 Nm (9.5 ftlb.)

Fig 2: Identifying Hinge Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
