Removing Crash Support

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

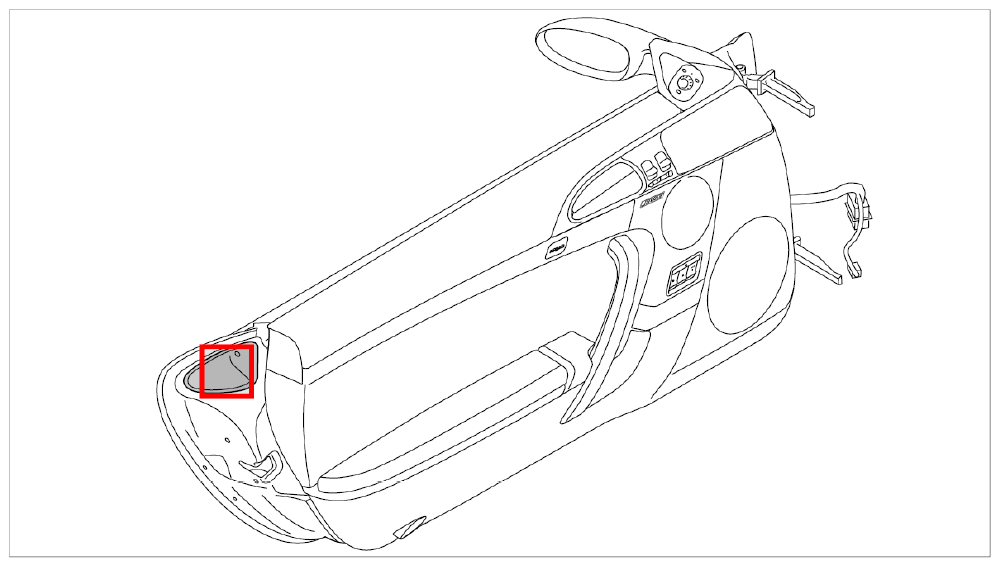

Fig 1: Position Of Crash Support
G09824258Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Insert a screwdriver into the opening on the crash support -1- (-arrow A-)  and carefully release the locking lug -arrow B-  .
  2. Remove crash support -1-  from the door -2- (-arrow C-)  .

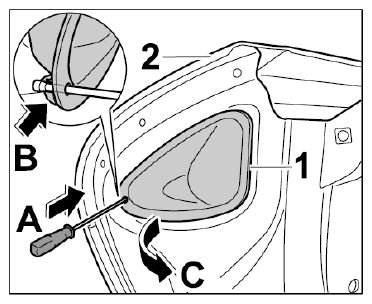

    3. Fig 2: Removing Crash Support
    G09824259Courtesy of PORSCHE CARS NORTH AMERICA, INC.
