Installing Crash Support

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

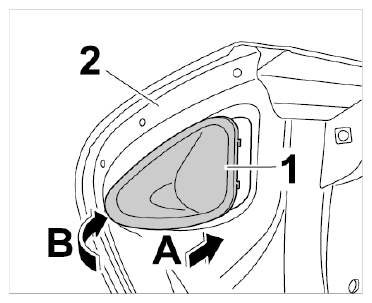

  1. Guide crash support -1-  into the door -2- (-arrow A-)  and press it in until the locking lug engages securely -arrow B-  .
    Fig 1: Installing Crash Support
    G09824260Courtesy of PORSCHE CARS NORTH AMERICA, INC.
