Removing Door Handle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

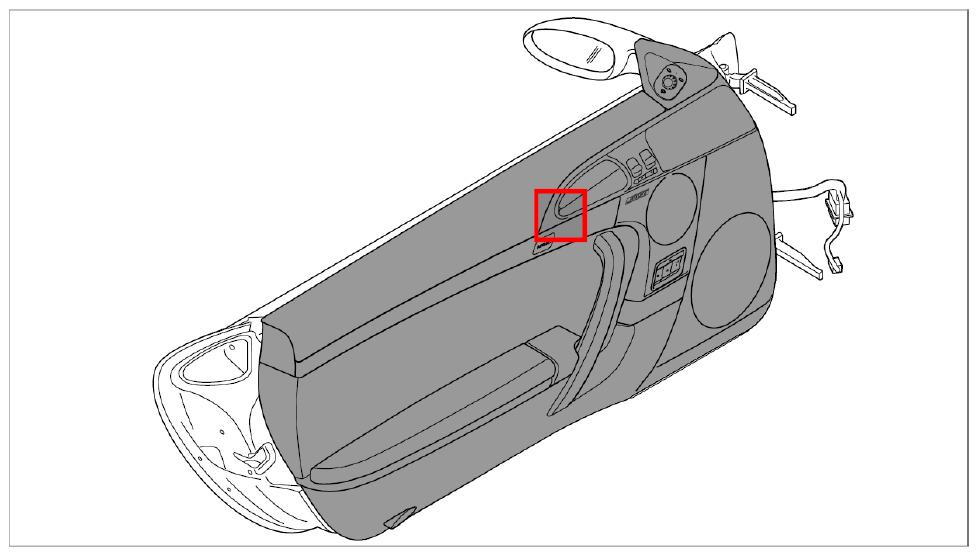

Fig 1: Identifying Position Of Door Handle
G09824254Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Undo fastening screws -1-  .

    Information

    • Make sure that the return spring does not pop out.
  2. Insert a screwdriver between the door trim panel and the door handle -2-  . Press door handle down -arrow A-  and remove from the door trim panel -arrow B-  .

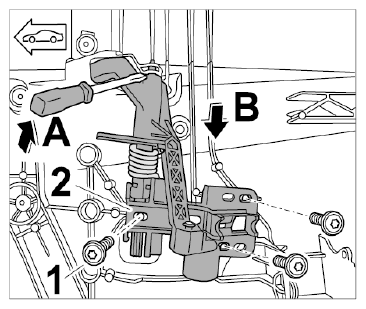

    3. Fig 2: Removing Door Handle
    G09824255Courtesy of PORSCHE CARS NORTH AMERICA, INC.
