Installing Door Handle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

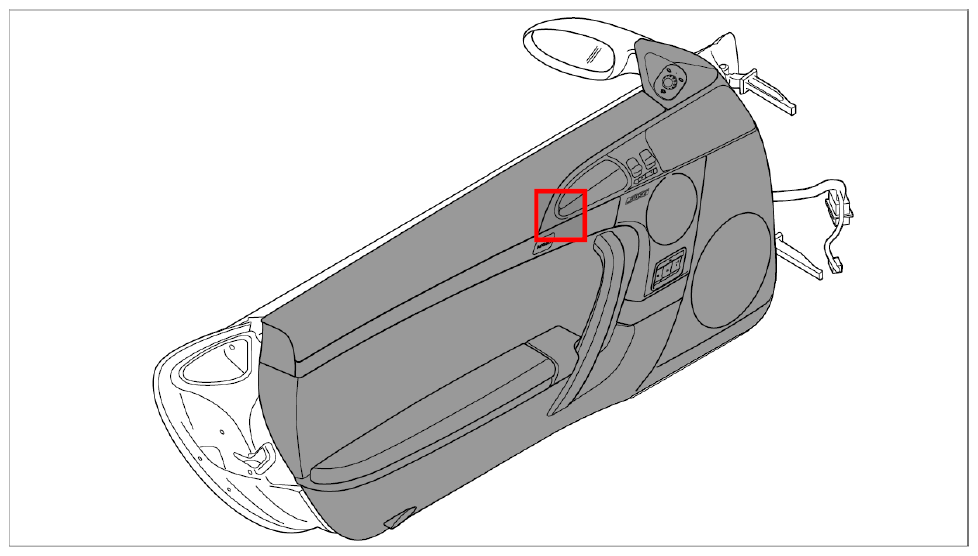

Fig 1: Identifying Position Of Door Handle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

To fit the door handle correctly, the return spring must be hooked into place prior to installation.

Position door handle -2- on door trim panel and secure with fastening screws -1- . Tightening torque → Final tightening: 2 Nm (ftlb.) (1.5)+0.2 Nm (ftlb.) (+0.1)

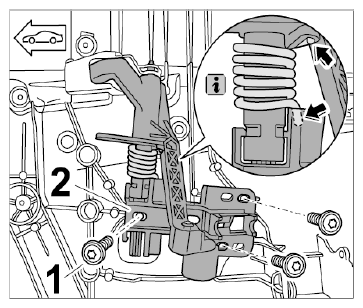

Fig 2: Installing Door Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Pull the door handle carefully to check that the return spring is fixed correctly.
