Replacing Door Sub-Frame

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace door sub-frame.

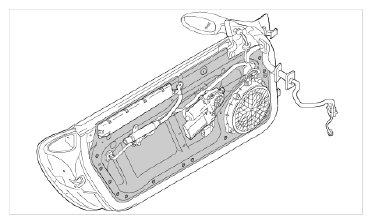

    Fig 1: Identifying Door Sub-Frame
    G09824253Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Remove door sub-frame. → Removing Door Unit Carrier
    2. 1.2. Disassemble old door sub-frame and assemble new door sub-frame. → Disassembling Door Unit Carrier
    3. 1.3. Install door sub-frame. → Installing Door Unit Carrier
