Disconnecting Electrical Plug Connection On Microswitch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

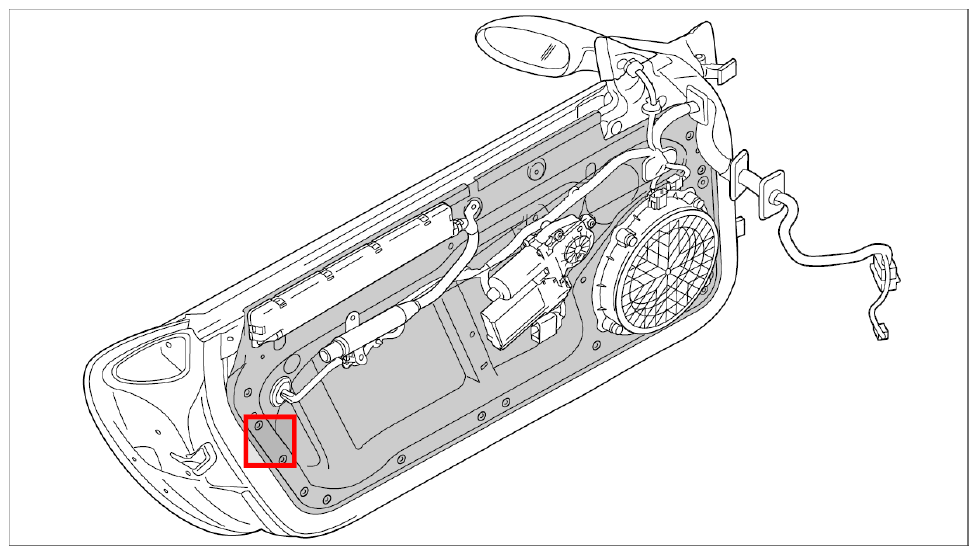

Fig 1: Overview Of Door Unit Carrier
G09824231Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

  1. Unlock the electrical plug connection for the microswitch -1-  by pressing the locking tab -arrow A-  and remove -arrow B-  .

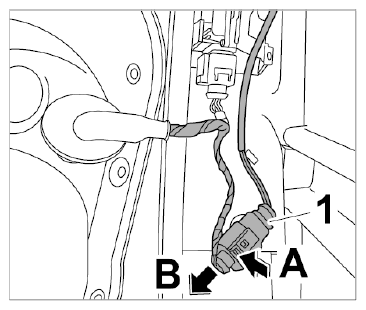

    Fig 2: Disconnecting Microswitch Plug Connection
    G09824232Courtesy of PORSCHE CARS NORTH AMERICA, INC.
