Removing Striker Pin

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The striker pin counterplate is permanently fixed to the B-pillar structure. After the striker pin has been removed, the counterplate remains in the lower end position on the B-pillar.

Open door.

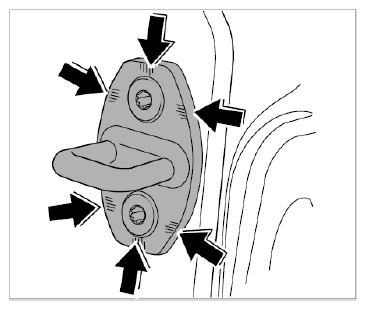

Determine the position of the striker pin in relation to the B-pillar according to the impression made at the factory -arrows- and note it down.

Fig 1: Positioning Striker Pin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

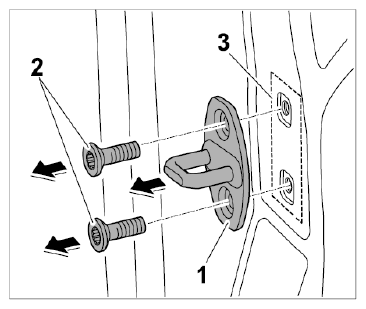

Remove fastening screws -2- from striker pin -1- .
Remove striker pin -1- .

Fig 2: Removing Striker Pin

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
