Installing Striker Pin

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position striker pin in line with the markings.

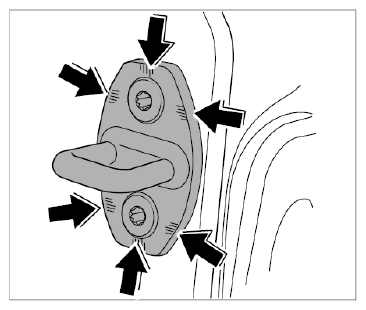

    Fig 1: Positioning Striker Pin
    G09824218Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in fastening screws -2-  for the striker pin -1-  and tighten slightly.

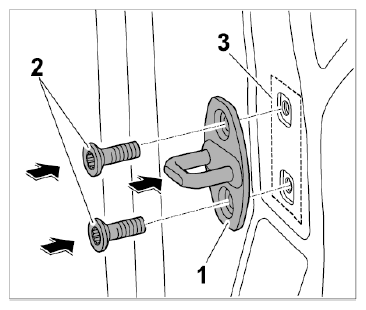

    Fig 2: Installing Striker Pin
    G09824219Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Carefully close door and check that the striker pin is correctly positioned with respect to the lock.
  4. If necessary, adjust the striker pin accordingly.
  5. Tighten fastening screws M8 x 22 -2-  . Tightening torque → Final tightening: 23 Nm (ftlb.) (17)  .
  6. Remove the markings with a suitable cleaning product.
  7. Close the door.
