Unclipping And Disengaging The Bowden Cable

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

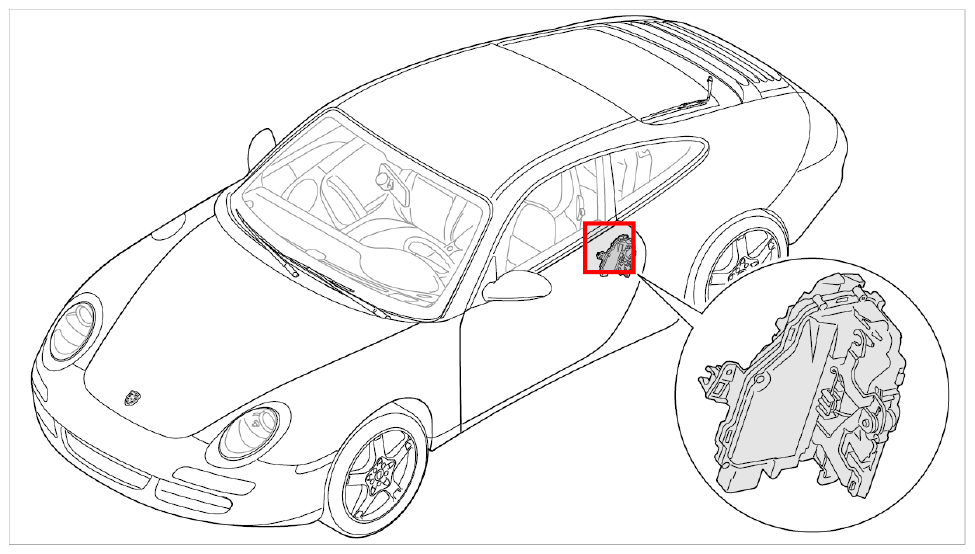

Fig 1: Identifying Door Lock
G09824203Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip bowden cable from the door lock -arrow A-  .
  2. Swivel bowden cable by 90° -arrow B-  and pull it out of the actuating lever -arrow C-  .

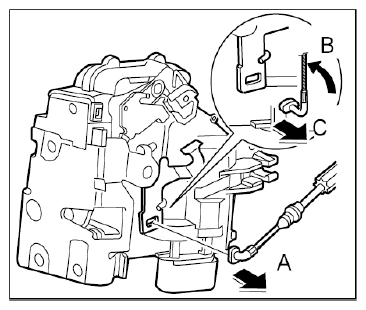

    3. Fig 2: Removing Bowden Cable From Door Lock
    G09824204Courtesy of PORSCHE CARS NORTH AMERICA, INC.
