Fitting The Bowden Cable

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

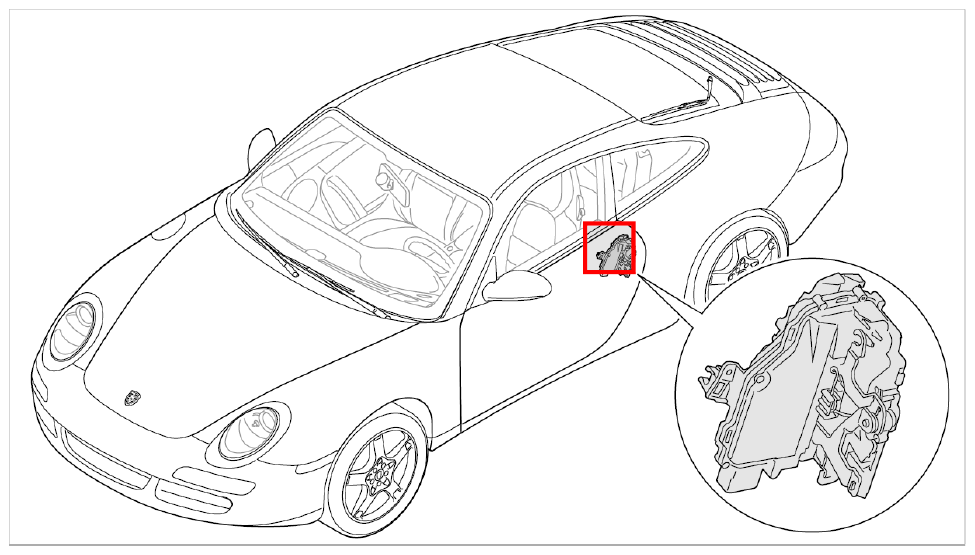

Fig 1: Identifying Door Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

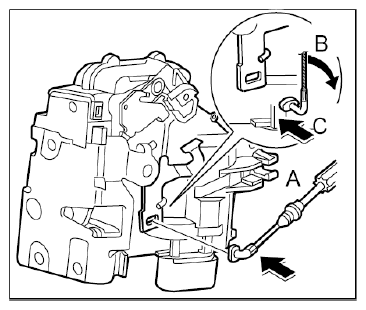

Insert bowden cable into the actuating lever -arrow C- and swivel by 90° -arrow B- .
Clip bowden cable into the door lock -arrow A- .

Fig 2: Fitting Bowden Cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
