Locking Lock Actuation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

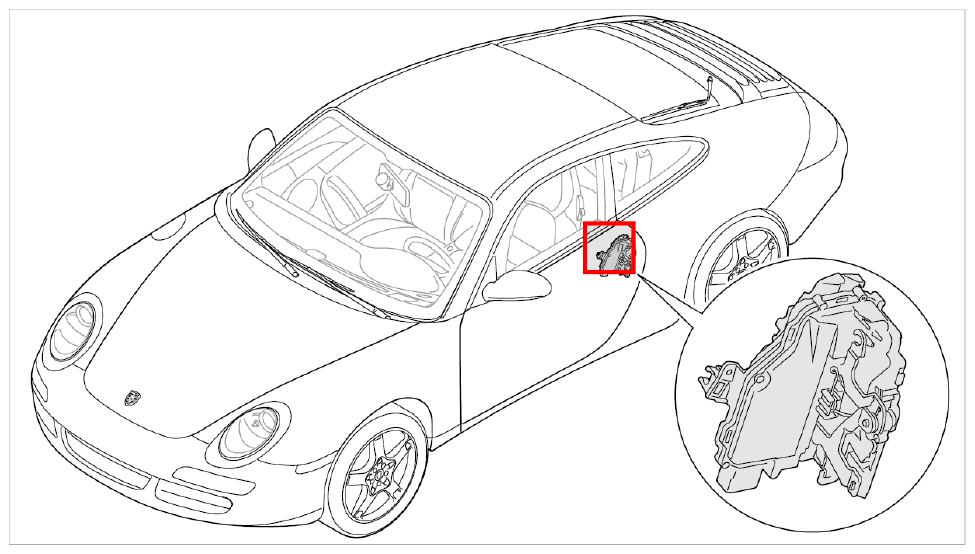

Fig 1: Identifying Door Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

To fit the lock actuation correctly, the securing spring must be hooked into the lock actuation lever before the door lock is installed.
The secured position of the lock actuation is released automatically when the door handle is first pressed. A clear clicking sound can be heard when the door handle is first pressed.

Information

Pull carefully on the lock actuation to check that it is secured in installation position. Repeat the steps listed above if necessary.

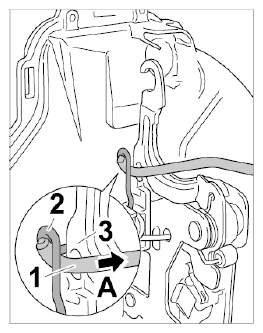

Guide the assembly tool T10118 -1- between the securing spring -2- and the lever -3- .
The securing spring -2- hooks on to the tool with a rotary movement.

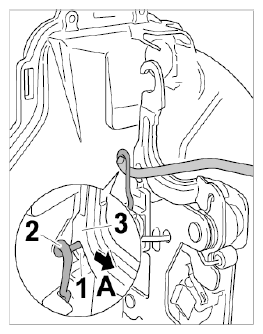

Pull the securing spring -2- towards the outside of the door (-arrow A- ) until the spring engages audibly in the locking lug -1- of the lever -3- .

Fig 2: Locking Lock Actuation
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unhook the tool -1- and remove it.

Fig 3: Pulling Securing Spring Towards Outside Of Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
