Disassembling Door Handle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press out circlip -1-  , pull pin -2-  out of the handle and remove actuating shaft -3-  .
  2. Pull pin rod -4-  out of the handle liner -9-  and separate handle -8-  from the handle liner.
  3. Remove return spring -6-  , eccentric -5-  and sleeve -7-  .
  4. Pull buffer -10-  out of the handle -8-  , check it and replace if necessary.

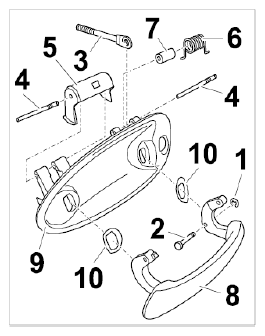

    5. Fig 1: Disassembled View Of Door Handle
    G09824196Courtesy of PORSCHE CARS NORTH AMERICA, INC.
