Assembling Door Handle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fasten buffer -10-  to handle -8-  .
  2. Position return spring -6-  , eccentric -5-  , sleeve -7-  and handle -8-  on the handle liner -9-  and press in pin rod -4-  .
  3. Position actuating shaft -3-  on handle. Insert pin -2-  and secure pin with the circlip -1-  .

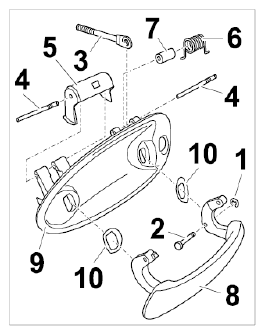

Fig 1: Exploded View Of Door Handle
G09824197Courtesy of PORSCHE CARS NORTH AMERICA, INC.
