Disconnect Connection Piece

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

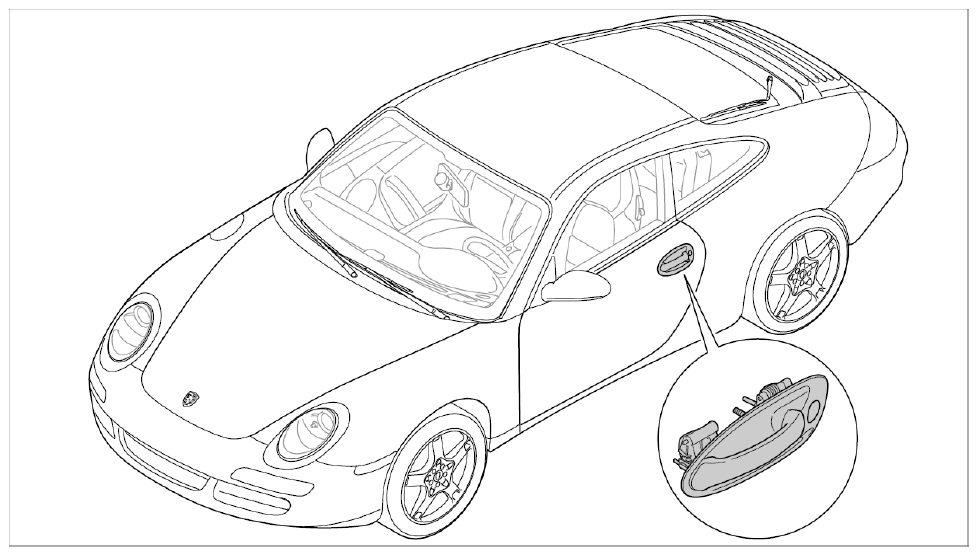

Fig 1: Identifying Door Handle
G09824178Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Press locking tabs -arrow A-  and move sliding part -1- -arrow B-  .
  2. Unclip the connection piece -2-  from the actuating shaft -3-  .

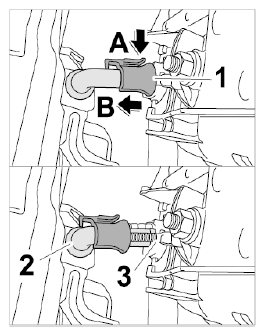

    3. Fig 2: Disconnecting Connection Piece
    G09824179Courtesy of PORSCHE CARS NORTH AMERICA, INC.
