Fit Connection Piece

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

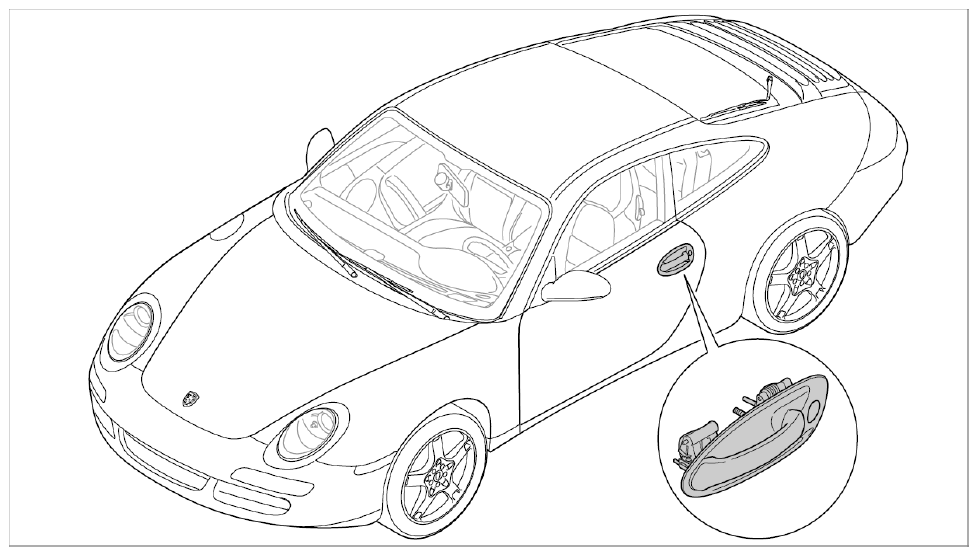

Fig 1: Identifying Door Handle
G09824190Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Insert the connection piece -1-  into the actuating shaft -2-  without play.
  2. Push out the sliding piece -3-  until it can be heard to engage.
  3. Actuate the handle to ensure that the handle and door lock function without play.

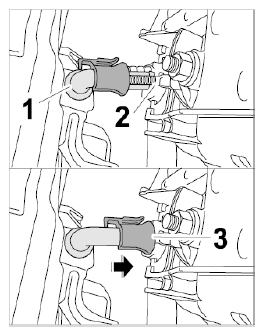

    4. Fig 2: Fitting Connection Piece
    G09824191Courtesy of PORSCHE CARS NORTH AMERICA, INC.
