Removing hose for headlight washer system (front apron)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

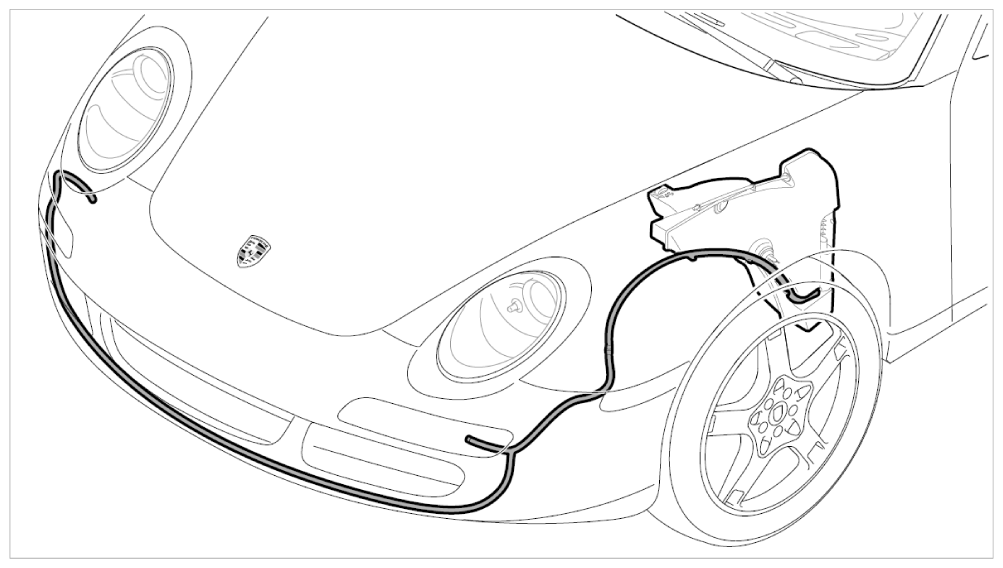

Fig 1: Overview Of Hose For Headlight Washer System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

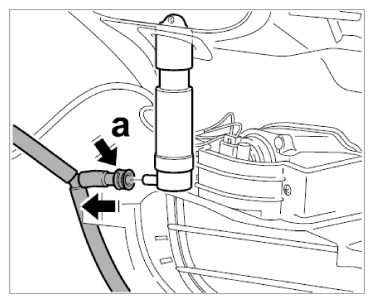

Release hose for headlight washer system -arrow a- and pull hose off the spray nozzle.

Fig 2: Pulling Off Hose For Headlight Washer System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

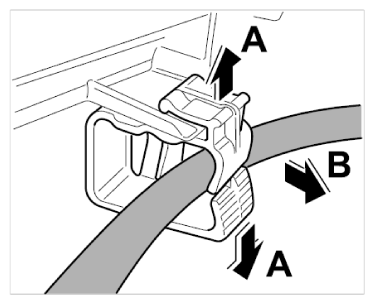

Open holder -arrows A- and remove hose for headlight washer system -arrow B- .

Fig 3: Removing Hose For Headlight Washer System From Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

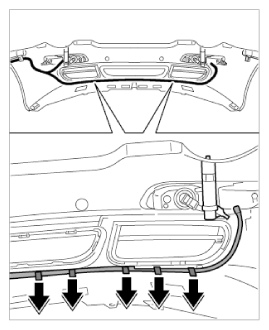

Remove hose for headlight washer system at the clips for the front apron.

Fig 4: Removing Hose For Headlight Washer System At Clips For Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
