Removing hose for headlight washer system (at tank)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

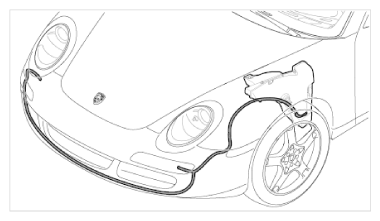

Fig 1: Overview Of Hose For Headlight Washer System
G09827587Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove hose for headlight washer system out of the clips at the tank.

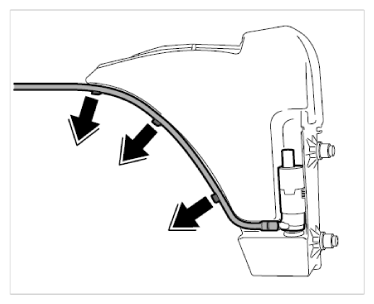

    Fig 2: Removing Hose For Headlight Washer System Out Of Clips At Tank
    G09827588Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull hose for headlight washer system off the pump.

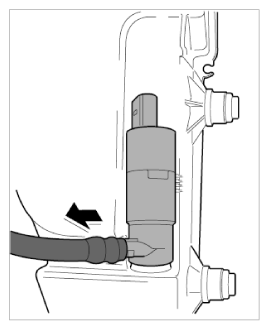

    Fig 3: Pulling Hose For Headlight Washer System Off Pump
    G09827589Courtesy of PORSCHE CARS NORTH AMERICA, INC.
