Installing hose for headlight washer system (front apron)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert hose for headlight washer system into the clips for the front apron.

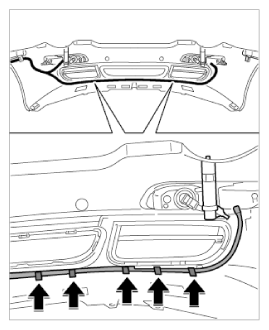

Fig 1: Inserting Hose For Headlight Washer System Into Clips For Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open holder -arrows A- and insert hose for headlight washer system -arrow B- .

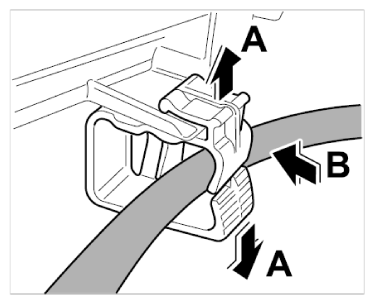

Fig 2: Inserting Hose For Headlight Washer System Into Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push hose for headlight washer system onto the spray nozzle until the hose clicks into place.

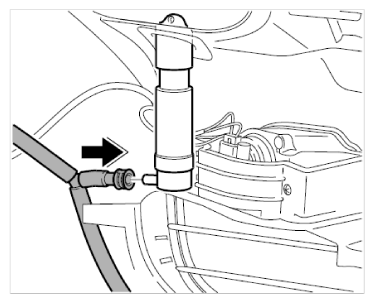

Fig 3: Pushing On Hose For Headlight Washer System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
