Removing sensor for fluid level display

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

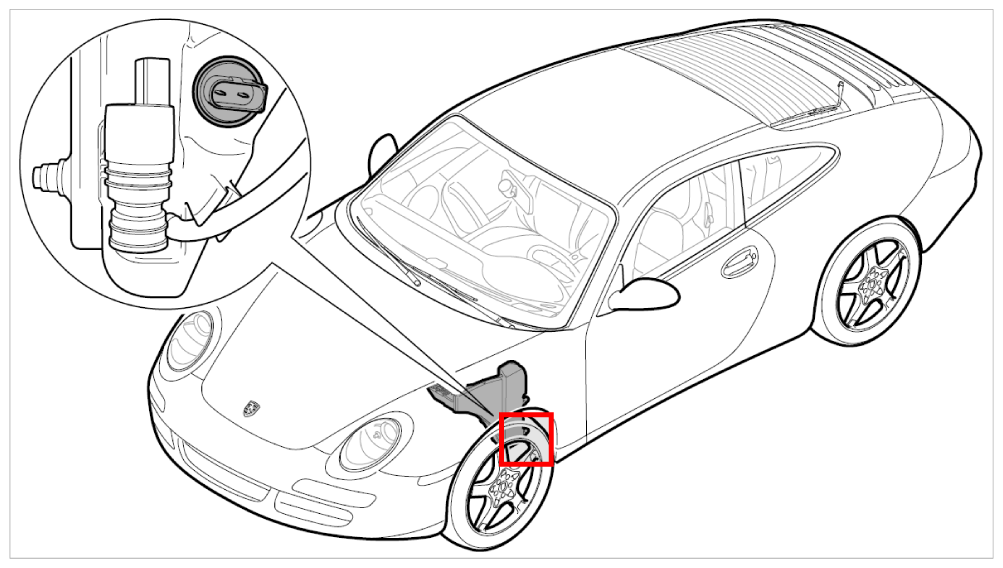

Fig 1: Overview Of Sensor For Fluid Level Display

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

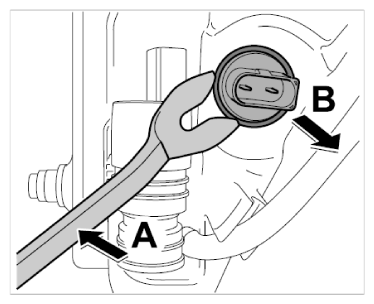

Use the disassembly tool, universal Nr.21 to lever the sender out of the rubber seal -arrow A- and remove it -arrow B- .

Fig 2: Removing Sensor For Fluid Level Display
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

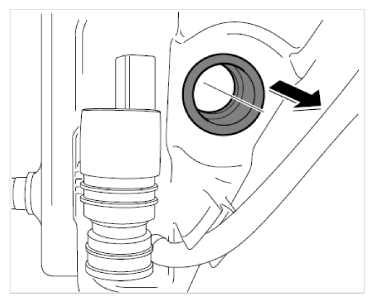

Remove rubber seal.

Fig 3: Removing Rubber Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
