Installing sensor for fluid level display

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A-  and press the rubber seal into the tank -arrow B-  until it is felt to engage.

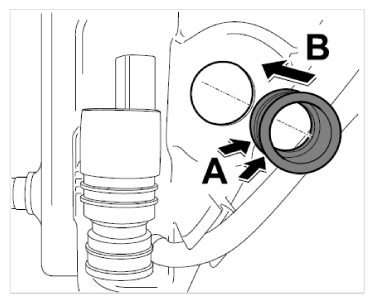

    Fig 1: Pressing In Rubber Seal
    G09827579Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A-  and press the sensor for fluid level display into the rubber seal -arrow B-  until the sensor is felt to engage.

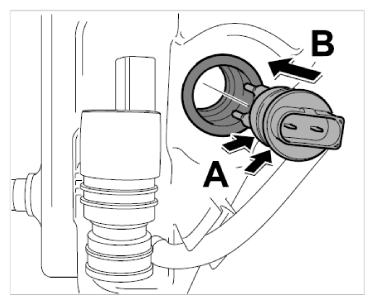

    Fig 2: Installing Sensor For Fluid Level Display
    G09827580Courtesy of PORSCHE CARS NORTH AMERICA, INC.
