Removing tank for windscreen washer system

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

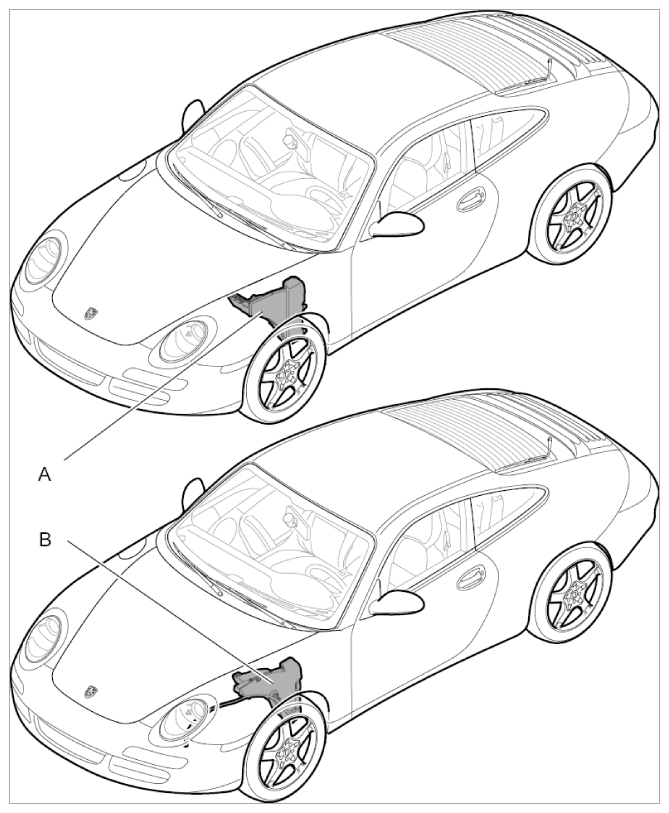

Fig 1: Identifying Installation Position Tank
G09827566Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 2.5 l tank
  2. 6.5 l tank (M288)
  1. Lift lever on water filler neck and pull out the filler neck.

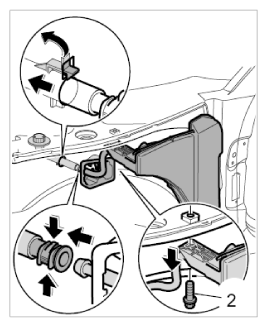

    Fig 2: Removing Tank
    G09827567Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release water connection for the windscreen washer spray nozzles and pull apart.
  3. Release water connection for the headlight washer spray nozzles and pull apart.
  4. Unscrew fastening screw -2-  and pull the tank from the mounting point on the A-pillar.
  5. Release the electrical plugs -a-  and pull them off.

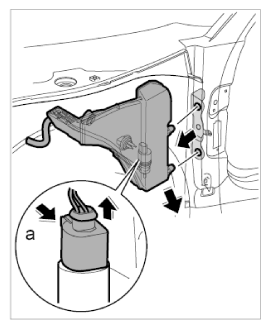

    Fig 3: Removing Tank From A-Pillar
    G09827568Courtesy of PORSCHE CARS NORTH AMERICA, INC.
