Installing tank for windscreen washer system

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Retain the tank in the wheel housing and push in electrical plug connections until plugs are felt to engage.

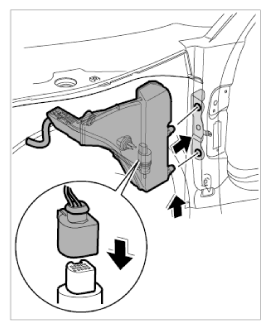

    Fig 1: Connecting Plugs And Engaging Tank At A-Pillar
    G09827569Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Engage the windscreen washer tank in the A-pillar and secure with the fastening screw -2-  . → Tightening torque: 15 ftlb.

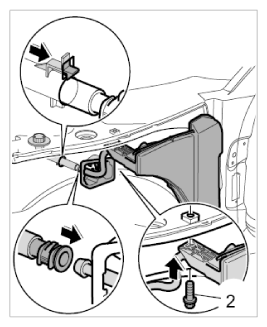

    Fig 2: Installing Tank
    G09827570Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Engage the electrical leads in the windscreen washer tank.
  4. Connect water connection for the windscreen washer spray nozzles.
  5. Connect water connection for the headlight washer spray nozzles.
  6. Route and engage the water lines to the tank.
