Removing pump for windscreen washer system

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

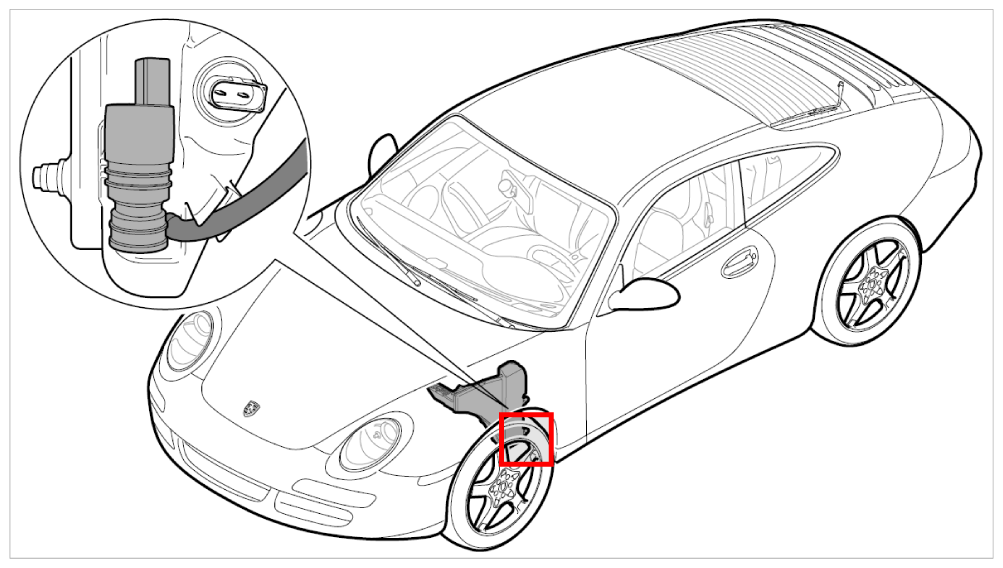

Fig 1: Overview Of Pump For Windscreen Washer System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

A tight hose can be pulled off more easily if it is heated with a hot-air gun!

Pull the water line off the pump for the windscreen washer system -arrow A- .

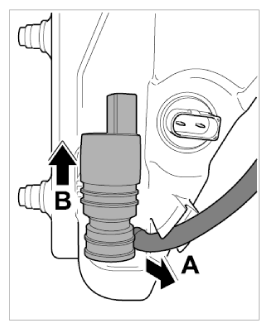

Fig 2: Removing Pump For Windscreen Washer System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the pump for the windscreen washer system upwards out of the reservoir -arrow B- .
Use the disassembly tool, universal Nr.21 to lever the rubber seal out of the reservoir -arrow A- and remove it -arrow B- .

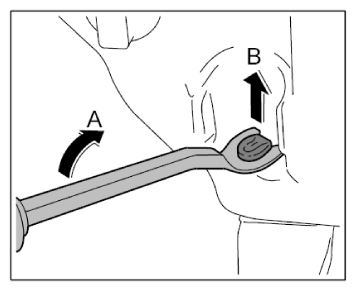

Fig 3: Removing Rubber Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
