Installing pump for windscreen washer system

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A-  and press the rubber seal into the tank -arrow B-  until it is felt to engage.

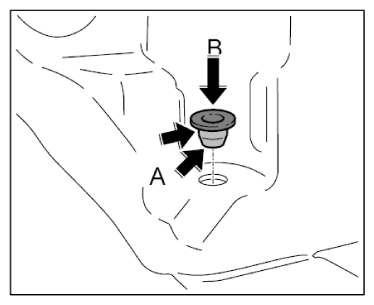

    Fig 1: Fitting Rubber Seal
    G09827564Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A-  and press the pump for the windscreen washer system into the rubber seal -arrow B-  until the pump is felt to engage.

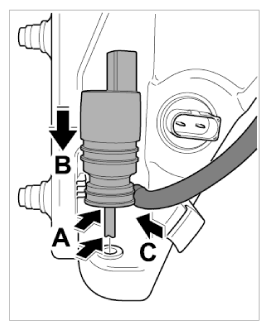

    Fig 2: Installing Pump For Windscreen Washer System
    G09827565Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Connect the water pipe to the connections at the pump for the windscreen washer system -arrow C-  .
