Removing wiper blade for rear window washer system

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Electrically moved components
  • Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

  1. Lift up the wiper arm and release and disengage the wiper blade -A-  .

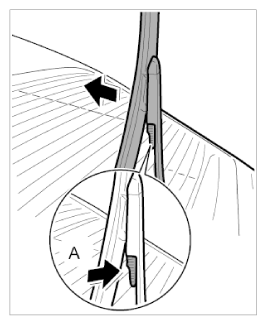

    Fig 1: Releasing Wiper Blade
    G09827558Courtesy of PORSCHE CARS NORTH AMERICA, INC.
