Removing wiper arm for rear window washer system

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

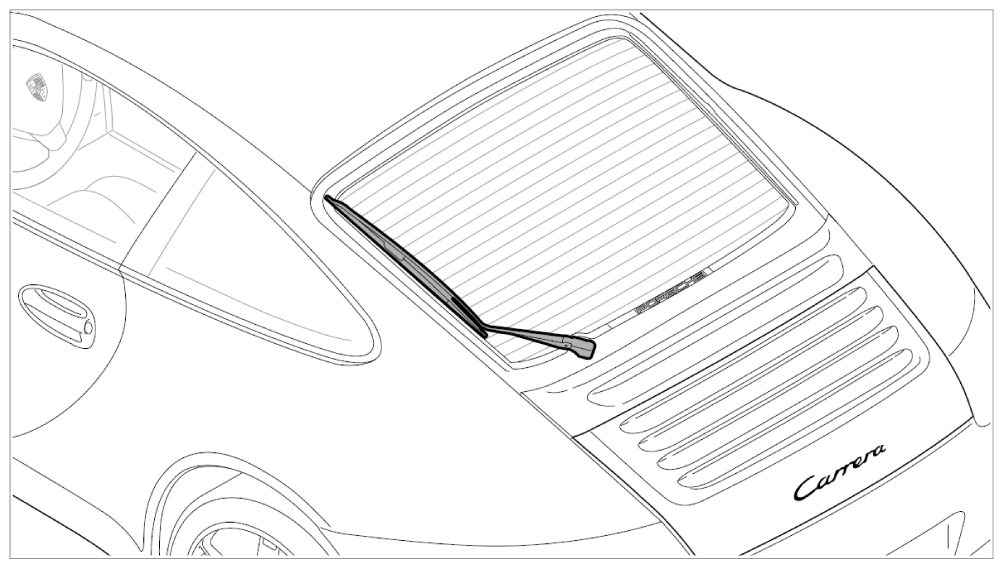

Fig 1: Identifying Installation Position Of Cover
G09827554Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pull cover -1-  up and off.

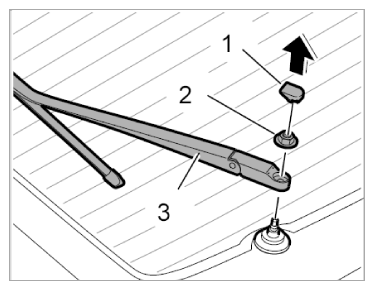

    Fig 2: Removing Wiper Arm
    G09827555Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew the fastening nut -2-  .
  3. Press wiper arm -3-  down at joint and pull down from the wiper motor drive.
