Installing wiper arm for rear window washer system

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position wiper arm -3-  on the wiper motor drive and do up the fastening nut -2-  by hand.

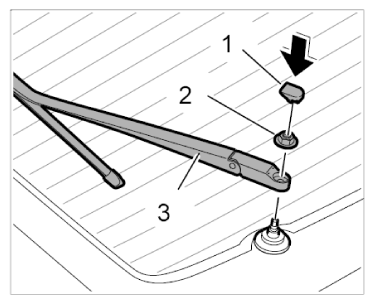

    Fig 1: Fitting Wiper Arm
    G09827556Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Adjust the wiper arm so that the wiper blade is parallel to the roof frame.

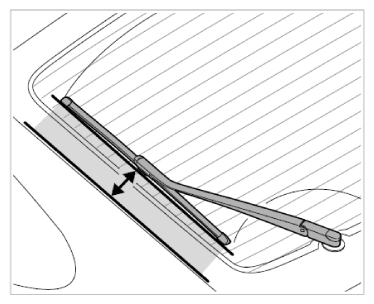

    Fig 2: Aligning Wiper Arm
    G09827557Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Screw on fastening nut -2-  and push on the cover -1-  . → Tightening torque: 14 ftlb.
  4. Actuate wiper motor of the rear window washer system, allow it to come to rest and check the position of the wiper arm once more.
