Removing wiper arm
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Electrically moved components
- Danger of limbs being trapped or severed
→ Switch off electric power to drive motor.
→ Make sure it does not switch on again.
→ Check that there is no electric charge.

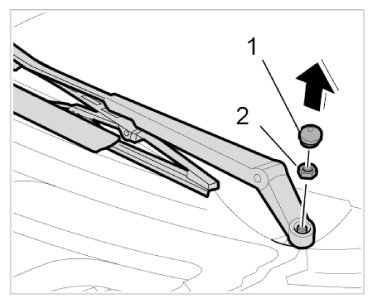

- Remove caps -1- and unscrew and remove the fastening nuts -2- .
- Push wiper arm down at the joint and pull it off the wiper linkage.
