Installing wiper arm

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Fit wiper arm on the linkage, align it and secure with the fastening nuts -2- . → Tightening torque: 28 Nm (21 ftlb.)

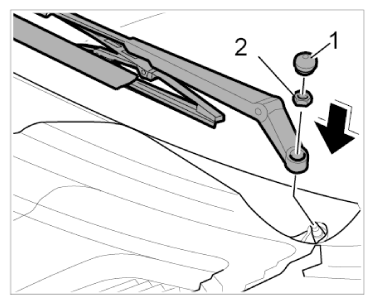

Fig 1: Securing Wiper Arm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and press on cap -1- until the cap locks with an audible click.
Start the wiper, check wiping area and wiper rest position and adjust the wiper arms again if necessary.
