Adjusting wiper arm attack angle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Special tools: Adjustment device 9737

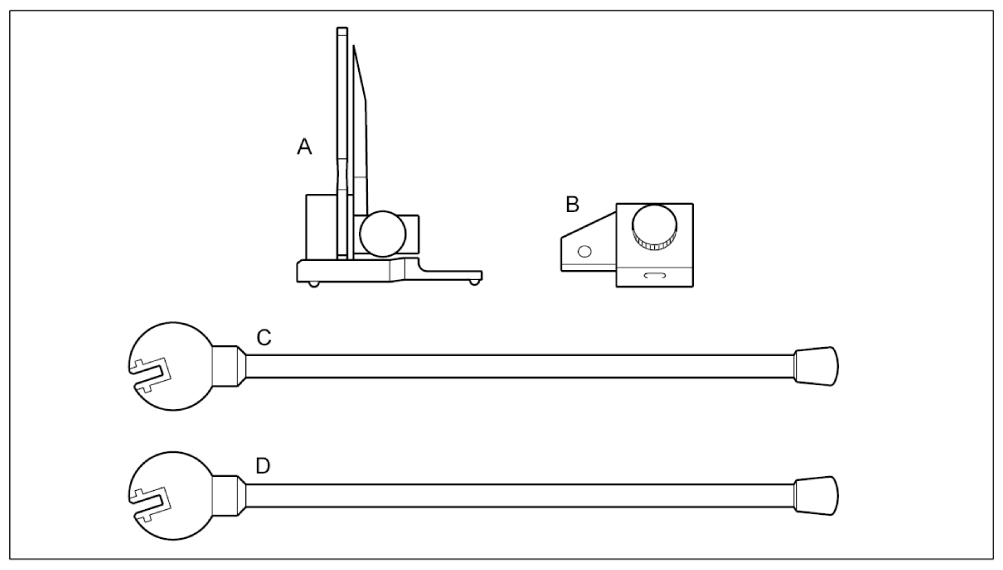

Fig 1: Overview Of Tools

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Angle measuring device
Adapter
Angle adjusting tool - holder
Angle adjusting tool - arm bracket

Information

Wiper system must be in the parking position. Before starting work, allow the wiper system to run 2 - 3 times with water spray.

WARNING: Electrically moved components

Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Fit adapter -B- for the sports car flush on the wiper arm and tighten with the knurled screw.

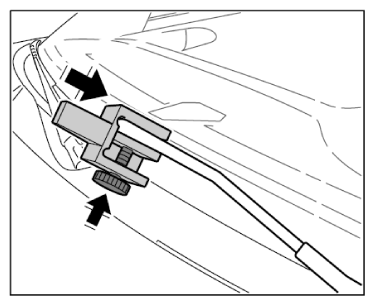

Fig 2: Screw Adapter Onto Wiper Arm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the angle measuring device -A- on the adapter and secure with the knurled screw.

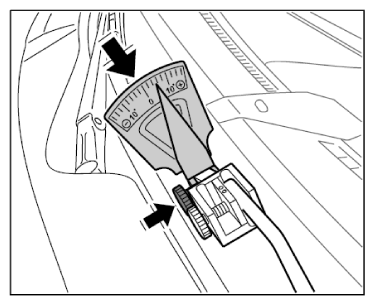

Fig 3: Screwing Angle Measuring Device To Adapter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Read off wiper arm attack angle using the angle measuring device and compare with the nominal values.

Wiper position	Nominal angle	Tolerance
Parking position on driver's side	+ 5°	+/- 2°
Parking position on passenger's side	+ 3°	+/- 2°

If the nominal values are not achieved, the wiper arm must be adjusted using the two adjusting tools.
Mount both adjusting tools on the wiper arm and adjust the angle to the nominal value by turning the front adjusting tool.

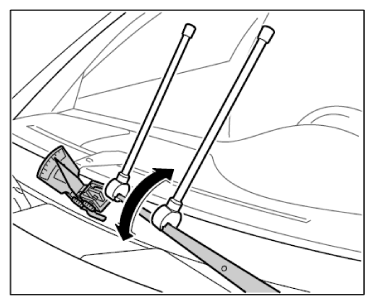

Fig 4: Adjusting Wiper Arm Angle To Nominal Value
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
