Installing rain sensor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

An adhesive pad must be used when reinstalling the rain sensor.
When fitting the adhesive pad, make sure there is no air trapped between the windscreen and the adhesive pad or between the adhesive pad and the rain sensor.
When installing the adhesive pad, the temperature of the windscreen, rain sensor and adhesive pad must be approx 20 °C. Carefully heat the windscreen with a hot-air gun for example.
Do not touch the adhesive surface of the sensor with your fingers.
If the sensor is new, remove the protection cap before sticking the sensor on to the windscreen.
When sticking on a new sensor, make sure that no air pockets are caught between the gel and the windscreen. Air pockets could impair the function of the sensor.
Sensor, orientation lights, wires and wiring ducts are spare parts.

Limited functionality of the rain sensor if the following points are not observed:

Information

If the removed rain sensor is to be reinstalled, the surfaces must be free of adhesive residues. Do not use harsh cleaning agents. Stick the adhesive pad onto the rain sensor at a temperature of approx. 20 °C.

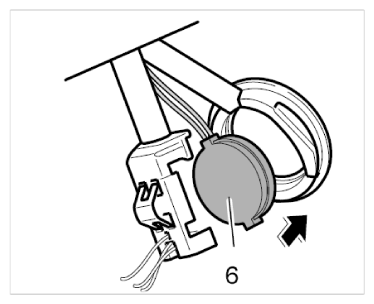

Press the rain sensor -6- onto the windscreen.

Fig 1: Sticking On Rain Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

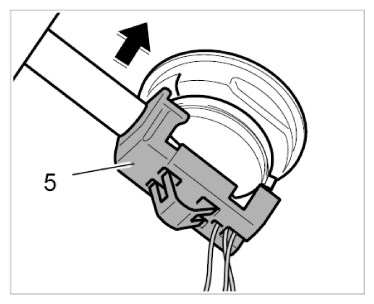

Push and press holder -5- onto the rain sensor until it engages.

Fig 2: Clipping In Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

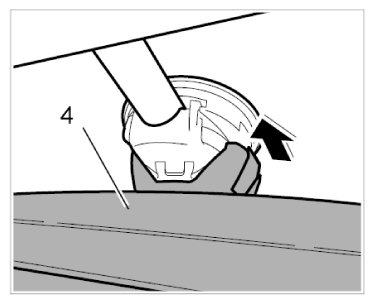

Push rear-view mirror -4- onto the mirror holder from below.

Fig 3: Pushing On Rear-View Mirror
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

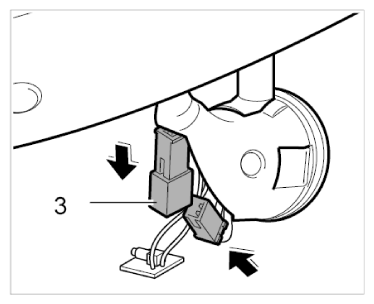

Join the plug connection -3- and insert it into the mirror base.

Fig 4: Plugging In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

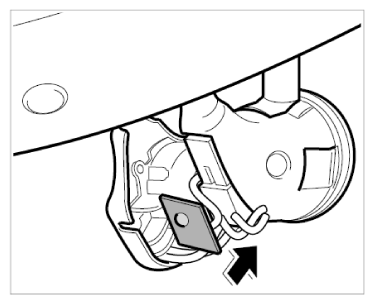

Insert orientation light into the cover.

Fig 5: Inserting Orientation Lights
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

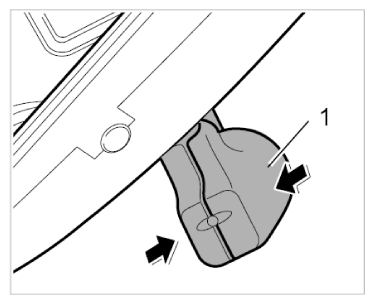

Join both covers -1- , ensuring that the orientation light is positioned correctly.

Fig 6: Attaching Mirror Base Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push the electrical plug connection together -1- until the plug is felt to engage.

Fig 7: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

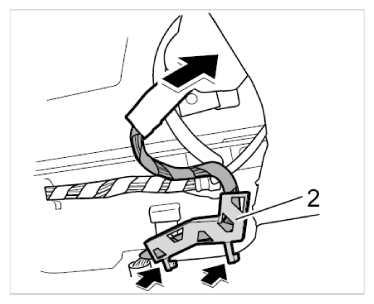

Engage holder -2- for the electric wire and push wire in behind the roof liner.

Fig 8: Pushing Wire In Behind Roof Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

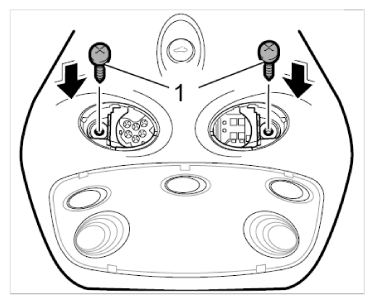

Tighten fastening screws -1- and clip in both covers.

Fig 9: Tightening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
