Reassembling The Hydraulic And Electrical Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position electrical control unit on hydraulic control unit. The guide pin on the electrical control unit must engage in the guide bore of the hydraulic control unit.

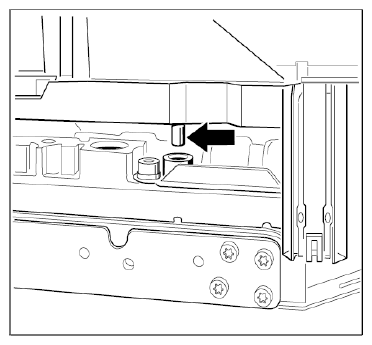

    Fig 1: Locating Pin And Bore
    G09825180Courtesy of PORSCHE CARS NORTH AMERICA, INC.
